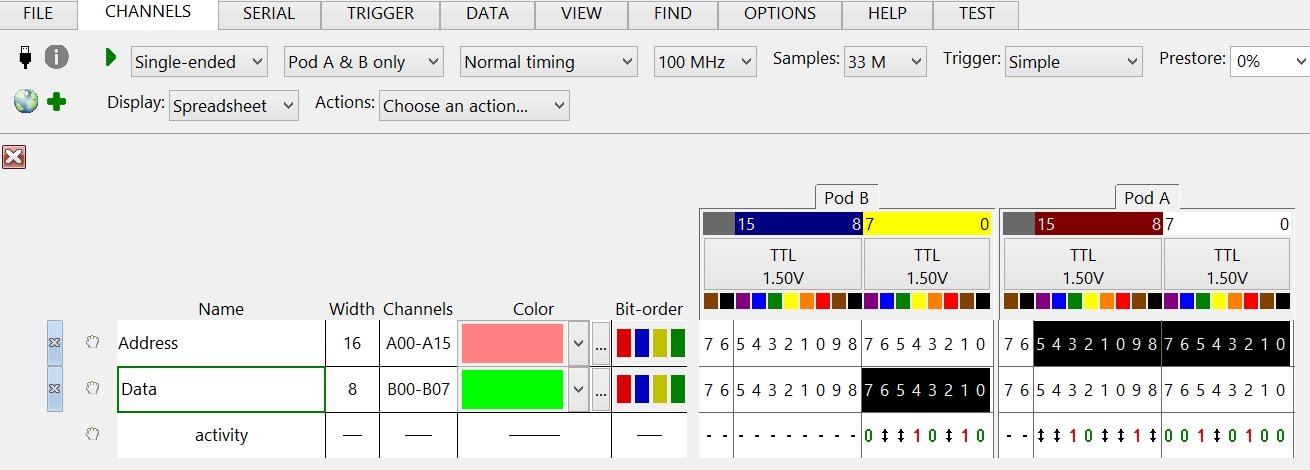

The Spreadsheet Display Type shows all channel assignments together.
|
| |
|
| |
|
|
| |
|
The Setup Area is on the left side of the Spreadsheet Display Type.
|
| |
|
The available columns in the Setup Area are: "Name", "Width", "Channels", "Color", "Bit-order", "Active Low?", and "Symbol Table".
|
| |
|
The Setup Area replaces both the Active Group Tabs and Common Edit Controls used in the Pods, Mictor, and PinPoint™ Display Types.
|
| |
|
Click-n-Drag the right edge of the setup area to resize the entire Setup Area.
|
| |
|
Click on the column labels to select which columns are visible and hidden. The Name and Channels columns are always visible. The "Active Low?" and "Symbol Table" columns are hidden by default.
|
| |
|
Click on specific Setup Area values to edit the name, width, bit-order, color, etc.
|
| |
|
Click-n-Drag the vertical lines in the Setup Area to resize each column.
|
| |
|
Right-click on a specific group line to cut, copy, paste, and delete that channel group.
|
| |
|
Click the delete buttons on the far left to remove the channel group.
|
| |
|
Click-n-Drag each line's hand icon to arrange the line order.
|
| |
|
|
| |
|
The Channel Edit Area is on the right side of the Spreadsheet Display.
|
| |
|
The editing rules in the Channel Area are identical to the Pods Area in the Pods Display Type.
|
| |
|
