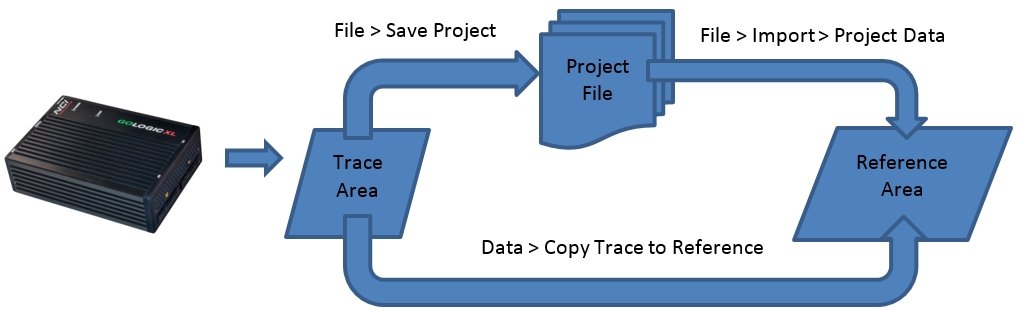

The software provides the "Trace" and "Reference" data areas.
|
| |
|
New data captures are always downloaded into the "Trace" area.
|
| |
|
The "Trace" data can then be moved or copied to the "Reference" area.
|
| |
 |
| |
|
|
| |
 |
Copies Trace to Reference area.
|
| |
|
 |
Swaps Trace and Reference area.
|
| |
|
 |
Imports data from a saved Project File into either Trace or Reference area.
|
| |
|
 |
Closes Trace or Reference data. Use this button to reduce the project file size.
|
|
| |
|
|
| |
|
In the Serial Tab, Trace or Reference can be the source data when converting the raw signals into formatted serial bus data.
|
| |
|
In the WaveForm view, Trace or Reference can be displayed or compared on each line.
|
| |
|
In the Numeric view, Trace or Reference can be displayed or compared in each column.
|
| |
|
In the PlugIns view, custom Plugins can request either Trace or Reference data for analysis and display.
|
| |
|
In the Analysis Tools, Trace or Reference can be the source data for the "Noise", "Pulse", and "Bus Values" types. The "Compare" type uses both Trace and Reference for comparison.
|
| |
|
In the Find Tab, Trace or Reference can be the source data when searching.
|
| |
|
